Yale Assure SL Keyless Lock - Z-Wave

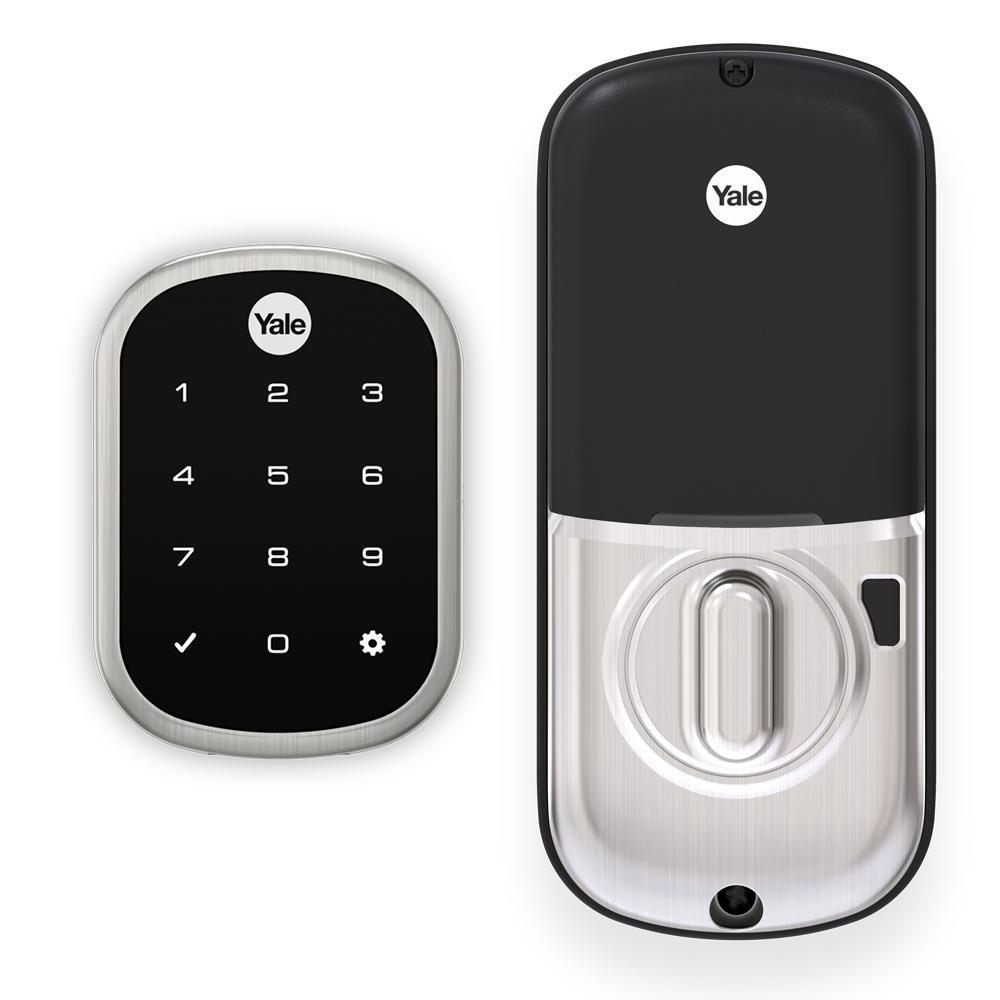

The YALE Assure SL Keyless Digital Deadbolt makes keys a thing of the past.

• Open via keypad or using "Twist and Go" with your smartphone
• Share up to 5 digital keys using the Yale App
• Holds up to 12 unique PIN codes
• Locks automatically after a short period
• Includes low battery warning and tamper alarm
• Uses the new Z-Wave 500 series chip ( Z-Wave module included)

Product Details

The YALE Assure SL Keyless Digital Deadbolt combines a highly secure lockset with an elegant electronic interactive touchscreen. It allows users to effortlessly access their premises using their smartphone and to remotely open the door for visitors when they are away.

Forget carrying around keys; lock and unlock your home with your smartphone.
Share digital keys with friends and family, view access history and manage user settings, all from your Smart Phone.

The Yale Assure SL Keyless Digital Deadbolt is designed for seamless integration with any Z-Wave product or automated control systems allowing you to monitor the status of this device and usage through a centralised controller.

This lock will fit in the place of your existing deadbolt and is compatible with all standard interior and exterior doors. Tapered features of the deadbolt allow it to be used even in applications where the door is not perfectly alligned. If this unit is to be controlled and managed by a single network controller, it is recomended that this Z-Wave lock be programmed through the centralized User Interface (UI) using a PC or hand-held device. This will ensure the best and most reliable communication to and from the deadbolt lock and centralized controller.

The best integrated Z-Wave Home Automation controller for Yale Assure SL Digital Deadbolt is VeraEdge/Plus. You'll get full control of  Yale Assure SL Digital Deadbolt functionality including remote access.

Product Support

IMPORTANT:

This lock may not be used on moving doors(i.e., cars, trains or similar applications). The lock is designed for residential and commercial applications only and door sizes of 32-50mm. We highly recommend that a secondary entrance is available in the unlikely event of total failure. This lock must not be used on fire doors.

Below is all the information you need to connect your YALE Assure Digital Deadbolt to a Vera system.

How to connect the systems:

• On the Vera Dashboard select 'Add Device' (keep lock in close proximity during inclusion and extend inclusion time for 60 sec)

• Select 'Door Locks' > 'Yale Touchscreen Deadbolt Assure Lock (YRD226/YRD246)'

• If the lock is new set a new master code as detailed below, otherwise click 'Next' on Vera.

How to set up the Master Code:

• Wake up the lock by placing your hand on the touch screen.

• Press the gear key in the lower right corner of the keypad.

• Press 1 followed by the gear key.

• Enter your new 4-8 digit master code followed by the gear key.

• Click 'Next' on Vera user interface.

To Include the lock in the Z-Wave network follow the instructions below

• Wake up the lock by placing your hand on the touch screen.

• Enter your master code followed by the gear key.

• Press 7 followed by the gear key.

• Press 1 followed by the gear key.

• The lock will play a 3 tone sound to indicate that the inclusion procedure has completed.

• Click 'Exit'.

Your lock is now added to your Vera system and should appear on the devices page.

⇒Yale Assure Lock App for Android devices

⇒Yale Assure Lock App for Apple devices

Manuals:

⇒Yale Assure App Quick Start Manual (603KB)

⇒Yale Assure Installation Template (292KB)

⇒Yale Assure Installation Manual (6.96MB)

Videos:

⇒Introducing the Yale Assure SL Digital Deadbolt

Technical Specifications
